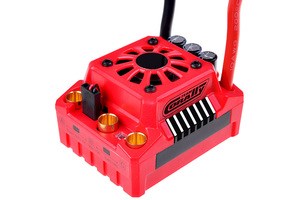

COR54011 TOROX 185A Brushless ESC 2-6S: Dementor, Kronos, Python, Shogun, Radix6, Kagama

Max. Cont. Current (A): 185 A
Motor Limit: 4S LiPo = 3000 Kv (5892 size motor) 6S LiPo = 2400 Kv (5892 size motor)
Input Voltage (V) min. - max.: 11.1-22.2
Max. Current (A): 950 A
Length (mm): 60.0 mm
Nr of Li-xx Cells: 3-6S
Width (mm): 48.0 mm
Nr of Ni-xx Cells: 9-18 Cell NiMH
Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
Height (mm): 36.2 mm
BEC Voltage (V): 6-7.4 V programmable
BEC Current (A): 6 A
Weight incl. wire (g): 189 g
Programmable: Yes
Programming Card: Hobbywing LED (optional)
Throttle Mode: Forward / Reverse programmable Reverse lockout
Drag Brake: 0-16% programmable
Battery Mode: NiMH/LiPo programmable
Lipo Cut off: programmable
Thermal Protection Temperature: 105C / 125C programmable
Water Protection: Yes
Cooling Fan: 30x30x10 mm
Connector (Motor): 6.5 mm female
Connector (Battery): XT90-connector
Battery wire size: 10 AWG
Car Type Use: 1/8th scale

Product Manual
