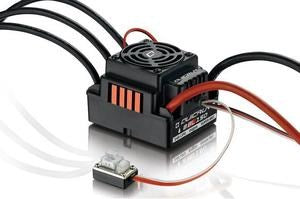

HWI30109002 QuicRun 8BL150 Waterproof Brushless ESC

Motor Limit:
For 4S Lipo or 12 cells NiMH: 4274-size or smaller motor with the KV<3000
For 6S Lipo or 18 cells NiMH: 4274-size or smaller motor with the KV<2400

Features:

• Water-proof and dust-proof for all-weather races.
• External programming port, easy to connect to the Program Card when setting the ESC.
• Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
• 9 steps of acceleration (/punch) adjustment from "soft" to "Very aggressive" to fit for different kinds of models, tires and tracks.
• Multiple protections: Low voltage cut-off protection/Over-heat protection/Throttle signal loss protection/Motor lock-up protection.
• One-button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.

Specifications:

• Cont./Peak Current: 150A/950A
• Motor Type Supported: Sensorless Brushless Motor
• Battery: 9-18 Cells NiMH 3-6S Lipo
• BEC Output: 6V/3A (Switch Mode)
• External Program Port: Available
