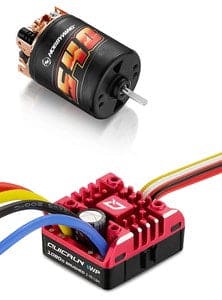

HWI38020349 QuicRun 1080 G2 ESC with Brushed 540, 30T Motor Combo

by HOBBYWING
$99.99
Inventory :

Features:

  • Fully Water-proof and dust-proof, suitable for all-weather races.
  • Small in size, with a built-in capacitor module.
  • Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
  • In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
  • Real-Time Adjustment of Drag Braking Force.
  • 15 programmable parameter items
  • PWM Frequency: 1K/2K/4K/8K/16K Adjustable
  • Freewheeling (DEO) capability
  • Drag brake rate in 9 levels (adjustable)
  • Electronic switch
  • Aluminum case for great heat dissipation
  • Great current endurance capability.
  • Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
  • Automatic throttle range calibration, easy to use.
  • Multiple protections:
  • Over Voltage Protection
  • Low voltage cut-off protection for battery
  • Over-heating protection
  • Throttle signal loss protection, and much more

ESC Specifications:

  • Brushed ESC: WP 1080 G2
  • p/n: 30120202
  • Waterproof: Yes
  • Dual Mode: No
  • Fwd Cont. / Peak Rev Cont. / Peak: 80A / 400A
  • Car Applicable: 1/10 Rock Crawler
  • Motor Limit: Brushed Motors 540/550 Series 2S LiPo or 5S NiMH, =10T or\RPM<3000@7.4V; 3S LiPo or 9S NiMH, =16T or RPM<2000@7.4V
  • Battery: 2-3S LiPo or 5-9S NiMH
  • BEC Output: 6V/7.4V/8.4V @ 4A (switch-mode)
  • PWM Frequency: Adjustable 1K/2K/4K/8K/16K
  • Wires: 14AWG-200mm w/ XT60 Connector
  • Size/ Weight: 37.2(L)* 31.9(W)*18.4(H) (without fan)
  • External Program Port: Separate Port Available
  • Programming: LED Program card
  • Weight*: 70.2g w/ wire and connectors

Motor Specifications:

  • Model: QUICRUN Brushed 540
  • PN: 30404313
  • Slot: 3
  • Turns: 30T
  • (RPM@7.4V): 14000
  • Input Voltage: 12.6V
  • Diameter/ Length(mm): ?=36mm(1.42in) L=53mm(2.09in)
  • Shaft Diameter/ Length (mm): ?=3.175mm(0.125in) L=16.5mm(0.65in)
  • Applications: 1/10 On-road / Buggy / Crawler & 2WD Truck
  • Weight: 168g

ESC Manual
