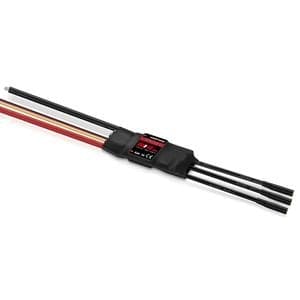

HWI80060441 Skywalker 100A V2 UBEC ESC, 3-6S
by HOBBYWING
$64.99
Inventory :
Features:
- High-performance 32-bit ARM M0 processor running up to 96MHz, support maximum speed up to 300,000 RPM (2-pole motor).
- Reverse Brake and Linear Reverse Brakes mode can effectively shorten the landing distance of the aircraft to simulate the landing of a real aircraft.
- DEO technology (Driving Efficiency Optimization) for fast and smooth throttle response, higher driving efficiency, longer flight times, lower ESC temperature, and more reliable operation.
- Search mode can help users find their aircraft by pulsing the motor to beep after the aircraft falls into a visually obstructed environment.
- Programmable with the LED Program Box, or transmitter.
- Multiple protection features include abnormal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the life of the ESC.
Specifications:
- p/n: 80060441
- Model: 100A V2
- Cont.Current: 100A
- Peak.Current: 120A
- Input Vol (Lipo): 3-6S
- BEC Output: 5V @ 7A (Switch-mode)
- Size (mm): 85x36x9
- Weight (g): 92
- Wires input : 10AWG-150mm
- Wires output: 12AWG-100mm
- Output connectors: 4.0 Gold Connectors (Female)
- Programming: Stick / LED program box
- Firmware update: N
Product Manual
