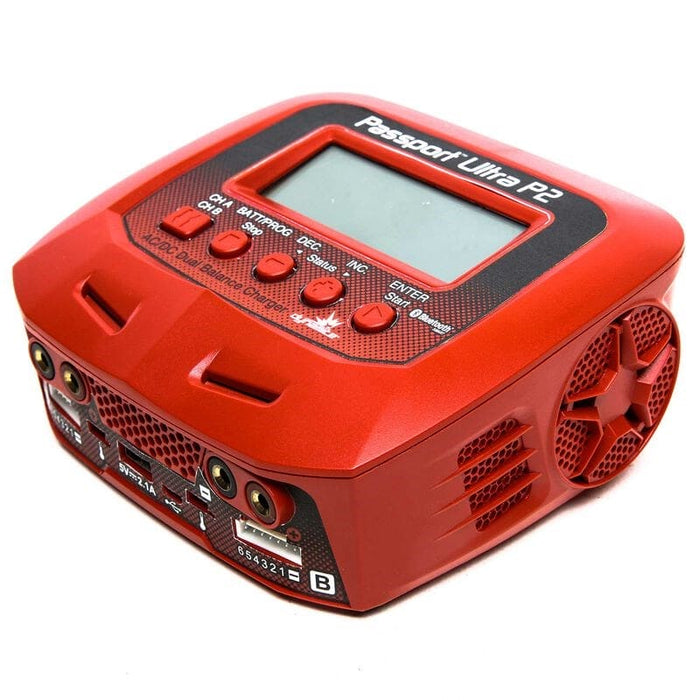

DYNC3016 Passport P2 100W AC/DC 2-Port Multicharger with Bluetooth Connectivity
Product Details
Quick Links
Overview
The Dynamite® Passport™ P2 AC Plus 2 Port AC/DC Multi-Charger represents the pinnacle of premium, high-performance chargers. With dual 100W output capability, the Passport P2 can charge Li-Po batteries in half the time it takes lower wattage/amperage chargers. In addition, you get the full gamut of charging features, including the ability to charge virtually all battery types and intuitive LCD display.
Key Features
- Powerful 100W AC/DC Multi-Charger
- Two channels charge two different kinds of batteries simultaneously
- Charges Lipo, LiHV, LiFe, NiMH, NiCd, and Pb batteries
- Charges 1-6 cell Lipo/ LiHV/LiFe, 1-15 cell NiMh/NiCd, and 2-20V Pb
- Dynamite Dashboard-Smart phone control and monitor via Bluetooth
- High visibility, simplified LCD interface
- Built-in balancing ports
- Integrated voice functionality
- 5-year limited warranty
Dynamite Dashboard
The Dynamite Dashboard provides seamless integration to select Dynamite "P" Series chargers by bringing real-time monitoring to your mobile device. You can monitor the charge status of your batteries, view real time battery stats including; battery type, battery cells, charge current, voltage, battery capacity, battery charge level and more. Simply download the app, pair your mobile device to the compatible Dynamite P-Series charger via Bluetooth and take advantage of viewing real-time charge stats while monitoring your battery's charge process. With Bluetooth communication, the Dynamite Dashboard puts your charge setting control at your fingertips.
Thanks to Dynamite's QR Scan with Smartphone control functionality, you can scan the QR code on your Dynamite Reaction 2.0 batteries to automatically set the optimal charge settings for that specific battery making using Dynamite "P" Series chargers easy, convenient and safe. Additionally, you have the ability to create your own QR codes for any battery line/specs.
Video Overview
Product Specifications
| Output | 100W max AC, 200W DC |
| Output Connector | Banana |
| Peak Detection | Yes |
| Product Weight | 1.4lbs (668g) |
| Short Circuit Protection | Yes |
| Maximum Continuous Discharge Rate | 0.10A-2.0A x 2 |
| Part Type | Electronics |
| Product Height | 2.6" (67mm) |
| Battery Balance Connector | XH Balancing Adapter Board |
| Programmable | Yes |
| Safety Timer | Yes |
| Connector Type | Balance, Banana, EC3, Futaba J, JST-XH, T-Plug, USB, XT-60 |
| Discharge | Yes |
| Maximum Charge Rate | 0.1A-10A x 2 |
| Product Length | 5.5" (140mm) |
| Reverse Polarity Protection | Yes |
| Thermal Protection | Yes |
| Over Current Protection | Yes |
| Integrated Balancing | Yes - Internal Balancer & External Adapter |
| Low Input Voltage Protection | Yes |
| Product Width | 6.0" (153mm) |
| Display | Yes |
| Input Voltage | 100-240V AC or 11-18V DC |
